The Use of Sprocket Wheel in Mechanical Systems

The Application of Sprocket Wheels in Mechanical Systems

1. Introduction

Sprocket wheels, integral components in chain-driven mechanical systems, play a pivotal role in power transmission, motion control, and load-bearing applications. Their design, material selection, and operational efficiency significantly impact the performance of machinery across industries such as automotive, aerospace, and manufacturing. This paper explores the fundamental principles, types, and practical applications of sprocket wheels, highlighting their contributions to modern mechanical engineering.

2. Basic Functions of Sprocket Wheels

2.1 Power Transmission

Sprocket wheels transfer rotational motion and torque through interlocking teeth with chains. Unlike belts or gears, chain-sprocket systems offer high efficiency (up to 98%) and reliability under heavy loads. For example, in bicycles, the pedal sprocket drives the rear wheel via a chain, converting human effort into forward motion.

2.2 Speed and Ratio Control

By varying the number of teeth on input and output sprockets, engineers can adjust speed ratios. A smaller driven sprocket increases rotational speed but reduces torque, while a larger sprocket enhances torque at the expense of speed. This flexibility is critical in conveyor systems and industrial machinery.

2.3 Precision and Stability

Sprockets ensure precise motion synchronization, making them ideal for applications requiring accurate positioning, such as printing presses and robotics. Their rigid engagement with chains minimizes slippage, unlike friction-based belt drives.

3. Types of Sprocket Wheels

3.1 Standard Sprockets

These feature uniform teeth and are used in general applications like bicycles and motorcycles. They comply with ISO or ANSI standards for compatibility.

3.2 Specialized Sprockets

Multi-pitch Sprockets: Designed for non-standard chain pitches, often used in custom machinery.

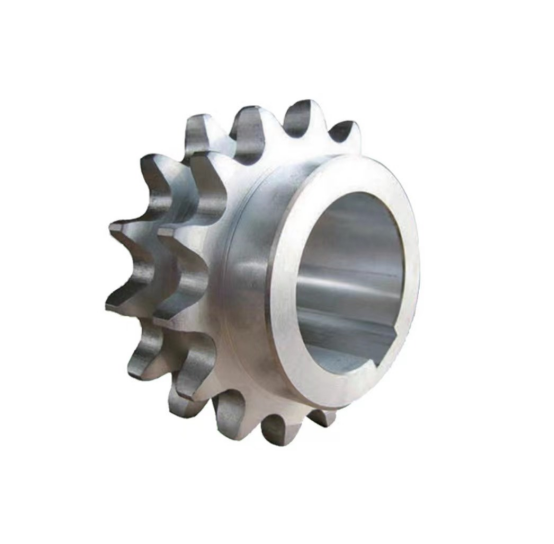

Double-Sprockets: Combine two sprockets for dual-chain systems, increasing load capacity.

Timing Sprockets: Used in synchronous belt drives (e.g., engine timing systems) to maintain precise camshaft-crankshaft alignment.

3.3 Material Variations

Sprockets are made from materials like carbon steel (for durability), stainless steel (corrosion resistance), or lightweight alloys (e.g., aluminum for bicycles). Surface treatments such as 淬火 or plating enhance wear resistance.

4. Design Considerations

4.1 Tooth Profile

The involute or modified tooth profile ensures smooth engagement with chains. Tooth count and pitch diameter must align with chain specifications to prevent excessive wear or noise.

4.2 Lubrication

Proper lubrication reduces friction and extends lifespan. In high-speed applications, sealed sprockets with built-in lubrication systems are preferred.

4.3 Installation and Alignment

Misalignment between sprockets causes chain wear and premature failure. Laser alignment tools are often used to ensure parallelism and tension.

5. Case Studies

5.1 Automotive Industry

Sprockets drive timing chains in internal combustion engines, maintaining valve and piston synchronization. High-strength materials and precision manufacturing are critical here to avoid engine damage.

5.2 Industrial Conveyors

Heavy-duty sprockets power conveyor systems in warehouses and manufacturing plants. Their ability to handle continuous loads and dusty environments makes them superior to belt drives.

5.3 Aerospace Applications

In aircraft, sprockets control landing gear mechanisms and flap systems. Titanium alloys are used to balance strength and weight, ensuring reliability in extreme conditions.

6. Challenges and Innovations

Despite their advantages, sprocket systems face challenges like noise, vibration, and maintenance requirements. Emerging solutions include:

Composite Materials: Reducing weight while maintaining strength.

Digital Monitoring: IoT sensors track sprocket wear in real-time, optimizing maintenance schedules.

3D-Printed Sprockets: Custom designs for niche applications, improving efficiency.

7. Conclusion

Sprocket wheels remain indispensable in mechanical systems due to their versatility, durability, and precise power transmission capabilities. As industries evolve, advancements in materials and design will further enhance their performance, solidifying their role in modern engineering.
